Abstract

Brief description of a selection of modern multichannel digital light sensors available as electronic components suitable for the construction of complete, possibly weather-proof, sensors. This description emphasizes their optical properties.

Code

library(ggspectra)
library(photobiologyWavebands)
library(photobiologySensors)

energy_as_default()
theme_set(theme_bw())

1 Modern Digital Light Sensors

Traditionally, and in many current applications, light sensors used to quantify photosynthetically active radiation (PAR)—including specific bands within the PAR spectrum and far-red (FR)—rely on discrete silicon photodiodes and optical filters to produce low-voltage analog signals.

In recent years integrated circuits (ICs) based on CMOS technology including photodiodes, analogue amplification, analogue to digital conversion (ADC) and supporting standardized serial digital communication protocols have been developed for different purposes. Some of them are good enough to replace with advantage discrete photodiodes. They can be connected directly to a microcontroller (e.g., boards such as Arduino UNO, Raspberry Pi Pico, ESP32 Dev Kit, etc.) or a single-board-computer (e.g., Raspberry Pi, Teensy, etc.).

A recent advance in the design of solid-state integrated “light” sensors has been the deposition of interference filters directly on the IC chip, selectively on individual photodiodes. Together with on-chip analogue signal amplification it makes possible the use of small photodiodes. As the amplification gain can be adjusted, the dynamic range is enhanced. Furthermore, including an analogue to digital converter (ADC) in the same chip and relying on digital communication avoids noise pickup in the wiring. Miniaturization also reduces power requirements.

Integrated digital sensors, even if calibrations are frequently applied during manufacture, aim to be cheap and thus their specifications can have wider wavelength tolerances under test conditions. However, some of these new IC sensors have temperature compensation and a temperature sensor also integrated resulting in extremely low and consistent dark noise readings making high amplification gain possible, contributing to an enhanced dynamic range.

All these sensors are extremely small and encapsulated as surface mounted devices (SMD) in very small packages (e.g., $2 \times 3 \times 1$ mm) with a tiny window. As they are based on interference filters their angle of acceptance is narrow, in many cases only 20 degrees.

Analogue amplification gain and the integration time in the ADC are set using the same communication link as for transmitting data. Thus, the instructions controlling the settings are sent by the same microcontroller or microcomputer board used to collect the data. Miniaturization and the use of low voltages makes these sensors very energy efficient, but the length or wiring between the sensor IC and the microcontroller is limited to a few centimetres.

A key supplier of digital light sensor ICs is ams OSRAM that offers many different multichannel sensors aiming at different applications. The main differences are in the number of channels and their wavelength sensitivity. Vishay has also developed similar sensors with a limited number of channels. When bought as components in quantity they are very cheap (3 to 15 €). Given their size, for prototyping and custom assembly they are easier to use if bought as “break out boards” (10 to 25 €), i.e., ready soldered on a small printed circuit board (PCB) to easy the task of connecting them. These sensor, even when soldered on break out boards, cannot be used on their own. They need to be connected to a micro-controller or single-board-computer to acquire the data and control their settings.

The Swiss company YoctoPuce has developed USB modules containing a microcontroller, memory, an isolated power supply and a USB interface. These modules have a built in data logger and a webserver-based user interface as well as a programming API. Through a hub they can be accessed remotely through the Internet or LAN. These modules cost more than the bare sensor ICs (40 to 100 €) but provide a readily usable solution. Their Yocto-Spectral USB module based on ams OSRAM’s AS743 digital spectral sensor when used for measuring irradiance require the addition of a diffuser. This module has built-in LEDs for measuring reflectance.

Aranet recently launched a weatherproof sensor featuring a cosine diffuser and a LoRa interface that connects to a base station; it is presumed to utilize a digital spectral sensor. Sold for €1,000 + VAT, this ready-made field sensor offers high ease of use but lacks flexibility regarding precomputed data summaries and does not provide access to raw data from individual channels.

For all these sensors, the wavelength and channel sensitivity guaranteed in specifications have rather loose tolerances. However, in most cases electronic components are closer to the typical specifications than the tolerance limits.

Examples of digital sensors that I think can be useful in agriculture and in related research fields such as ecology and physiology of plants are given below.

UV Sensor VML6075 from Vishay

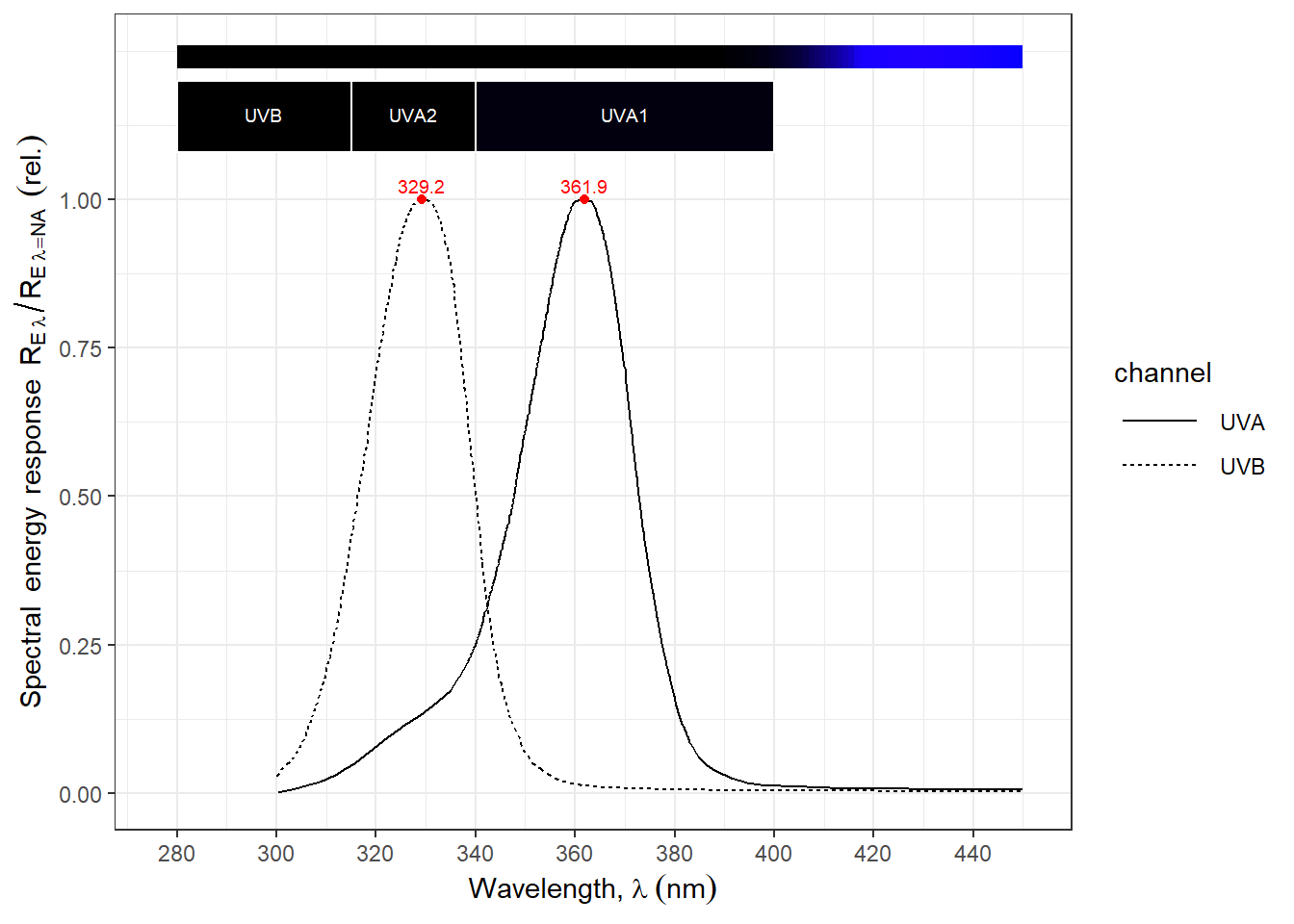

The VML6075 from Vishay is a digital UV sensor with two channels, named UVB and UVA in the documentation but closer to UVA1 and UVA2 in reality. Vishay provides an algorithm to compute UVI. This sensor is still available from distributors but its manufacture has been discontinued by Vishay.

Code

autoplot(sensors.mspct$Vishay_VEML6075,
         w.band = UV_bands("CIE"), range = c(280, 450))

UV Sensor AS7331 from ams OSRAM

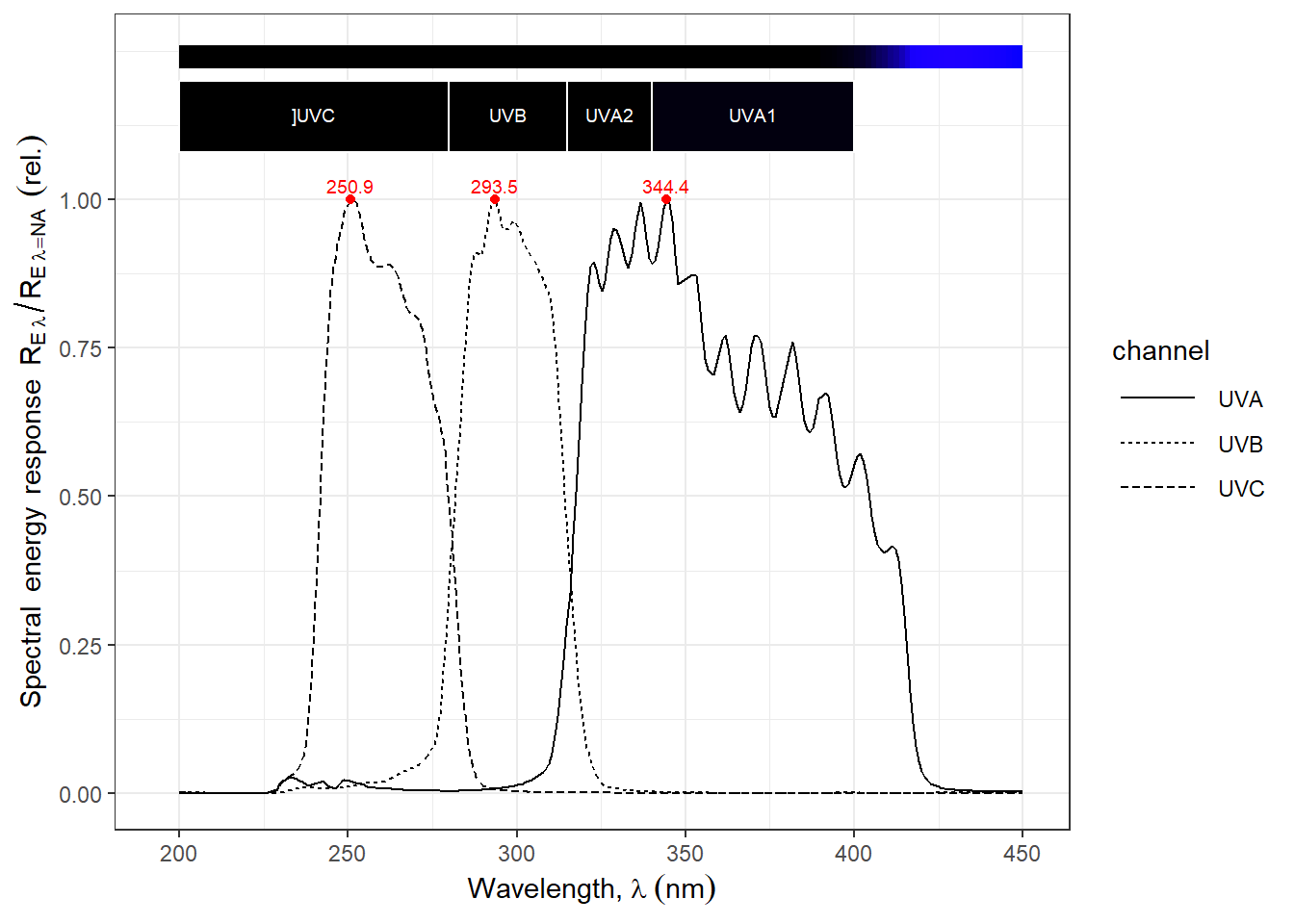

The AS7331 from ams OSRAM is a digital UV-radiation sensor with three channels, named UVC, UVB and UVA in the documentation. The band separation is rather good for computing UVI in sunlight and the usual artificial UV radiation sources.

Code

autoplot(sensors.mspct$ams_AS7331,
         w.band = UV_bands("CIE"), range = c(200, 450))

Sensitivity of Si photodiodes to UV radiation decreases with decreasing wavelength, but the design compensates for this using a photodiodes with larger area in this sensor than in those for VIS radiation.

Spectral VIS and IR sensor AS7343 from ams OSRAM

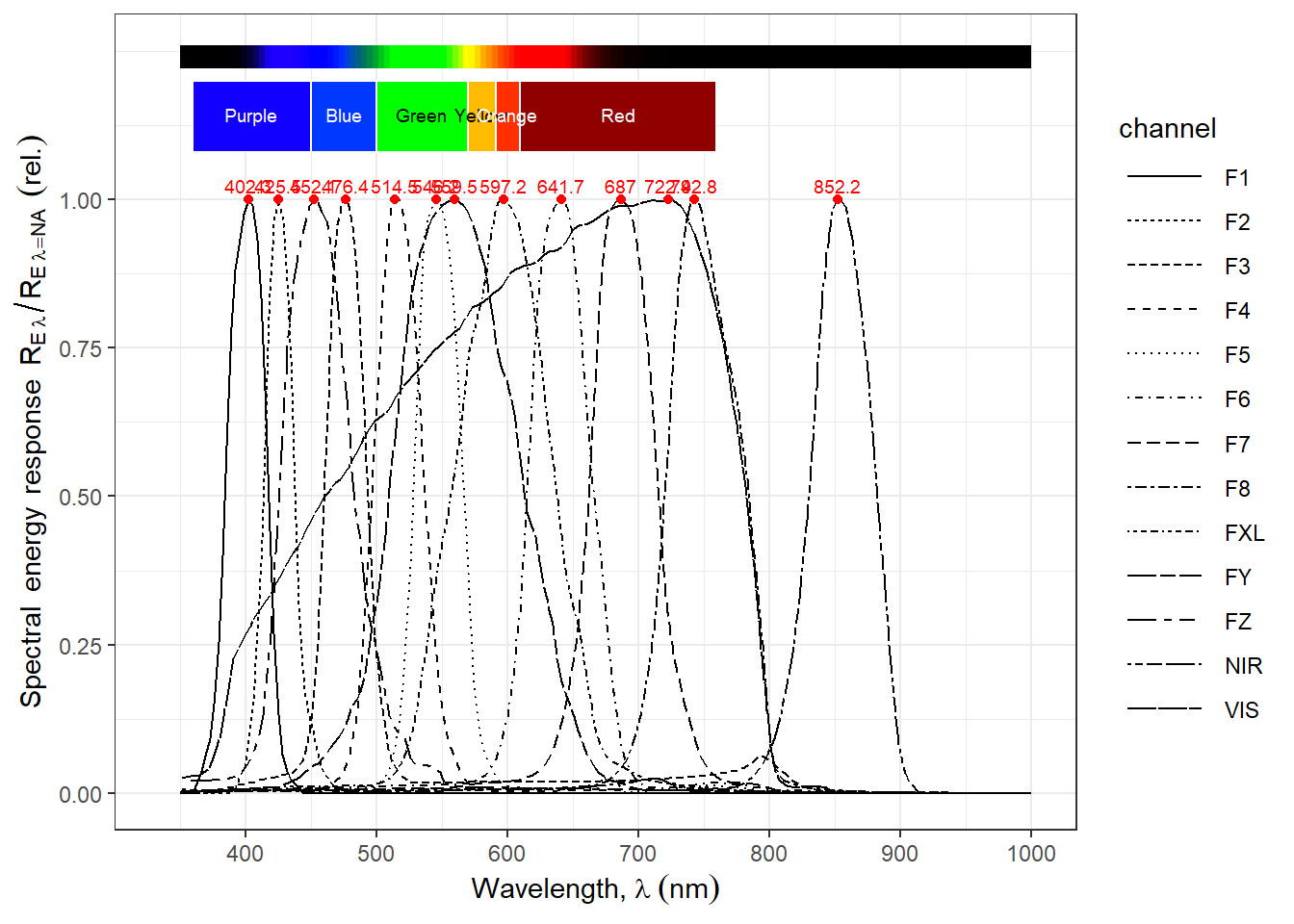

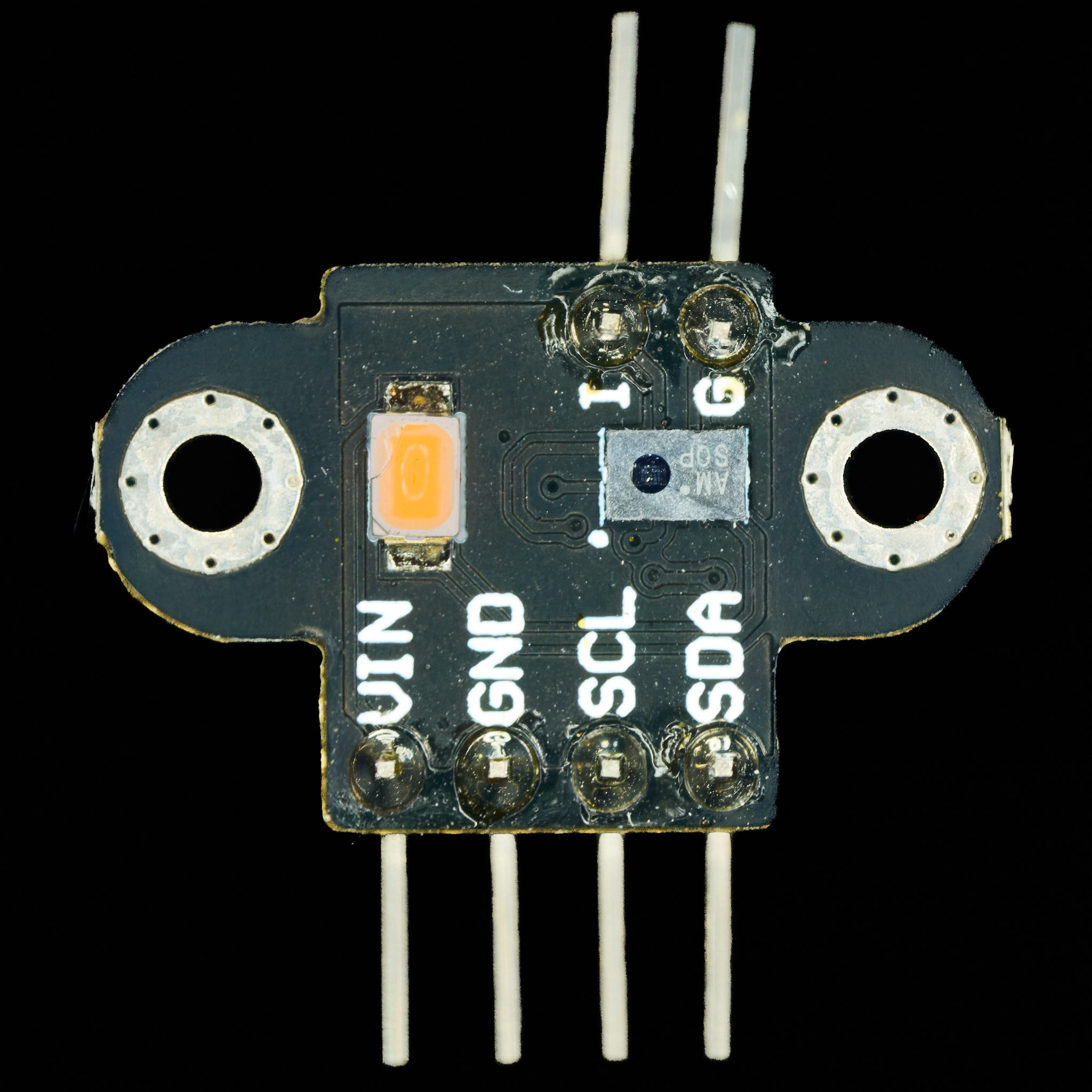

The AS7343 from ams OSRAM is a digital VIS and NIR sensor with 13 channels. This sensor seems like the most useful for measuring light from the perspective of plants as it seems possible to estimate PAR, ePAR and FR.

Code

autoplot(sensors.mspct$ams_AS7343,
         w.band = VIS_bands())

Spectral VIS and IR sensor AS7341 from ams OSRAM

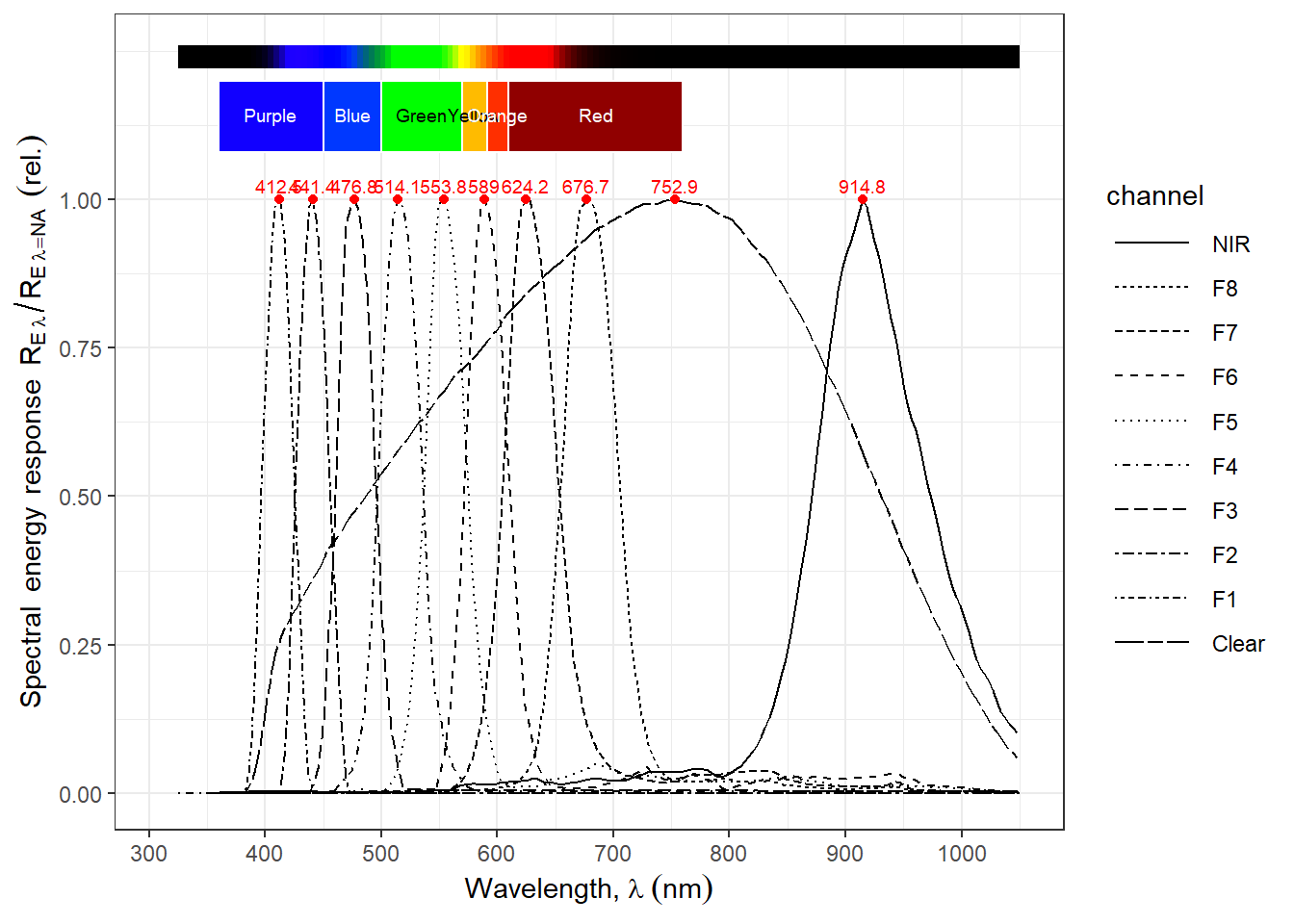

The AS7341 from ams OSRAM is a digital spectral VIS and IR sensor with 10 channels. The channels have wavebands of similar width suggesting that it could work well as a spectrometer for visible light. From the perspective of measuring light as relevant to plants, it lacks a far-red channel.

Code

autoplot(sensors.mspct$ams_AS7341,
         w.band = VIS_bands())

Spectral VIS and IR sensor TSL2591 from ams OSRAM

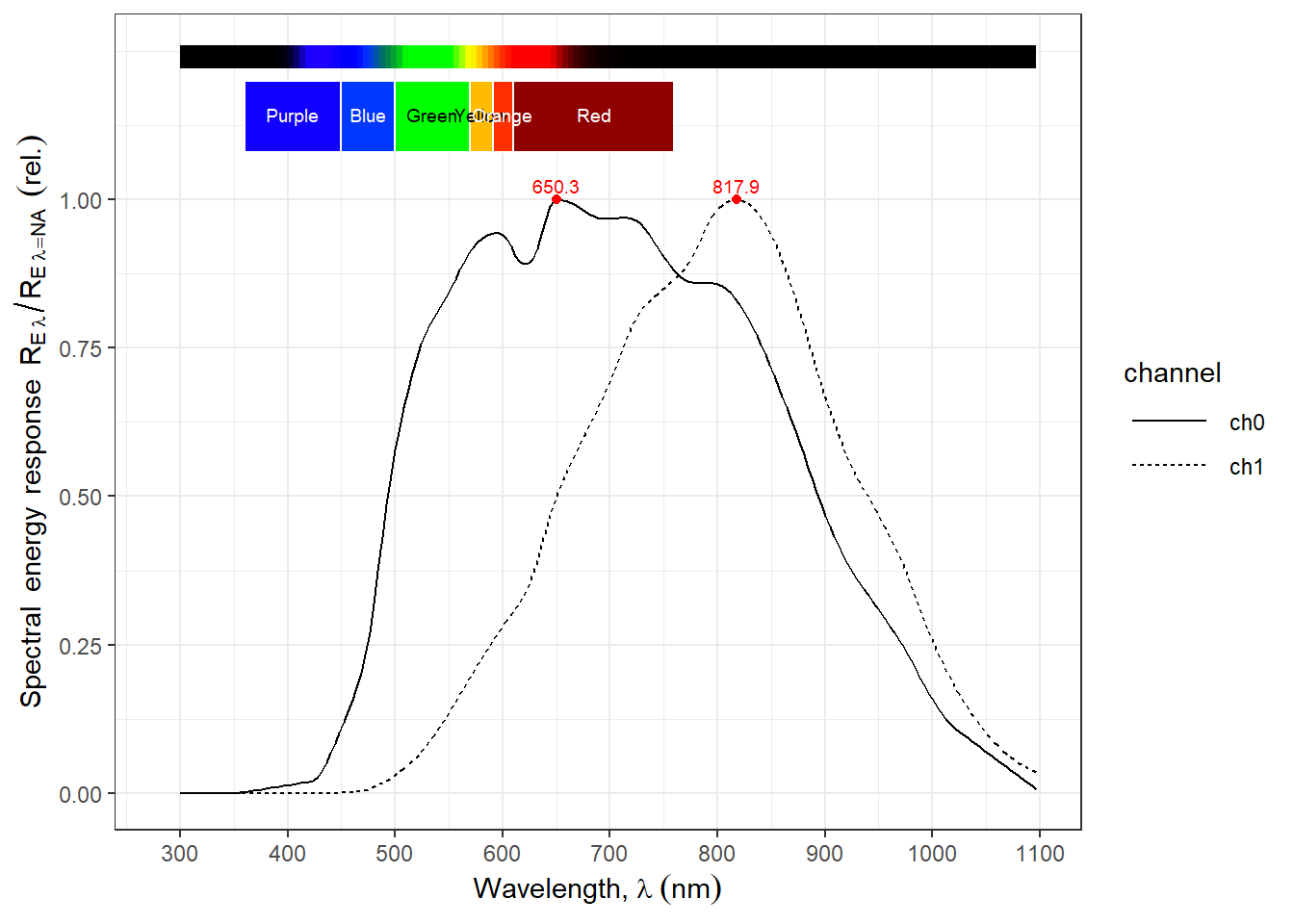

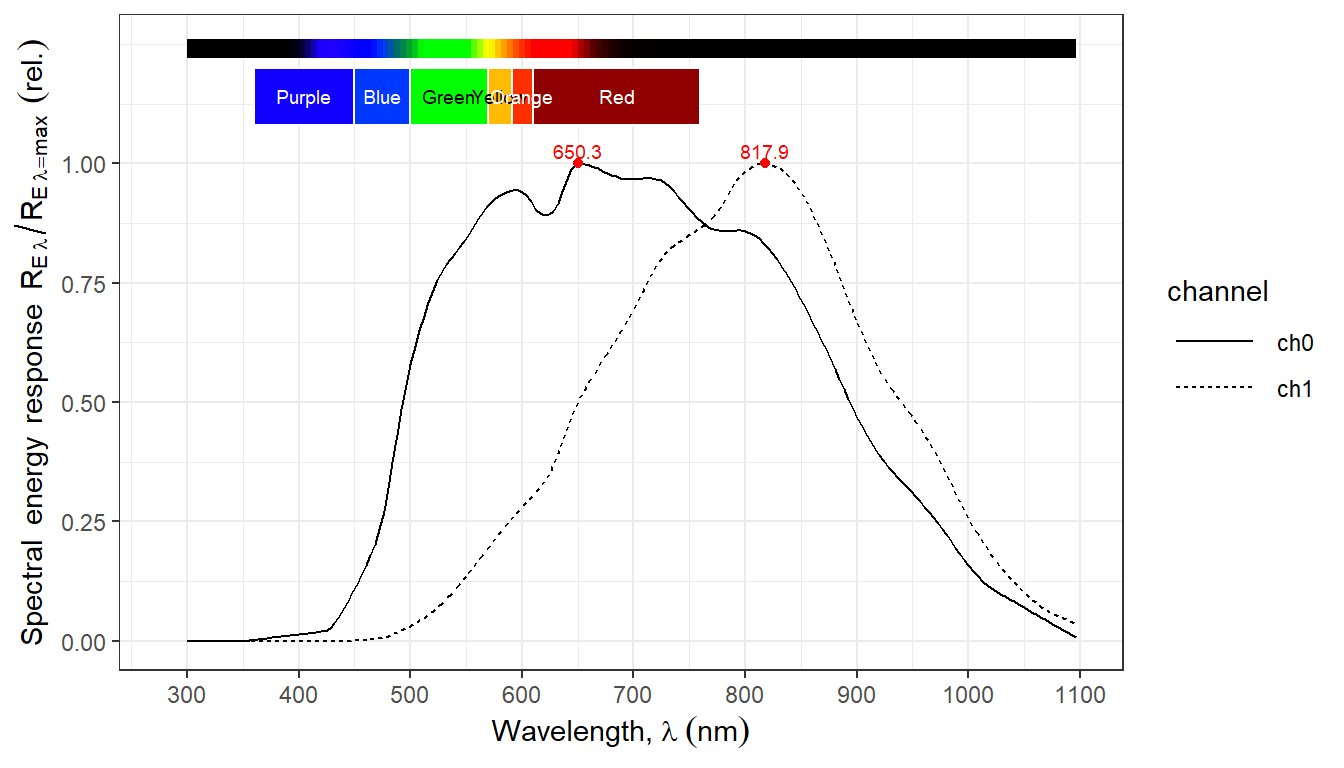

The TSL2591 from ams OSRAM is a digital illuminance sensor with two channels, named ch0 and ch1 in the documentation. Illuminance can be obtained by subtracting the NIR sensed by ch1 from ch0.

Code

autoplot(sensors.mspct$ams_TSL2591,
         w.band = VIS_bands())

Spectral VIS sensor AS7262 from ams OSRAM

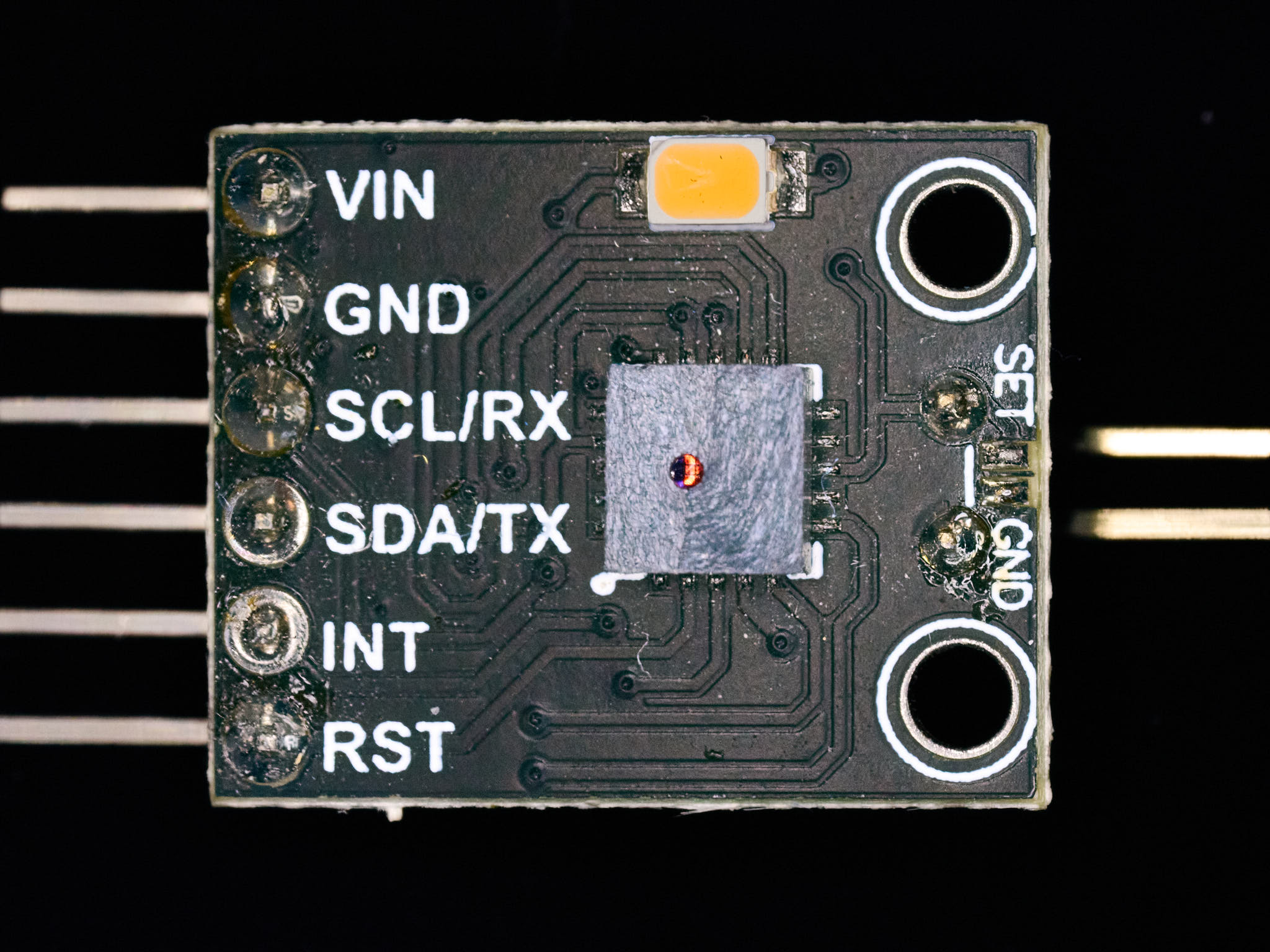

The AS7262 from ams OSRAM is a digital VIS sensor with 6 channels. This sensor has regularly spaced wavelength bands with a FWHM of 20 nm.

Code

autoplot(sensors.mspct$ams_AS7262,
         w.band = VIS_bands())

Spectral IR sensor AS7263 from ams OSRAM

The AS7263 from ams OSRAM is a digital red + NIR sensor with 6 channels. This sensor has been used in instruments for estimation of NDVI.

Code

autoplot(sensors.mspct$ams_AS7263,
         w.band = VIS_bands())

2 Long term availability

While some simple photodiodes commonly used to sense light have remained in production for more than 50 years, most integrated spectral sensors have been discontinued a few years after their introduction. Sometimes replacements with similar optical characteristics but different electric ratings have superceeded the discontinued types, but in other cases, such as with the VEML6075, no replacement exist. Thus, before adopting one of these sensors it is important to check current and expected future availability. In general, after discontinuation of production stocks remain active for some time. In some cases, stocking parts when still available can be important for continuity of measurements.

3 Suppliers

Well-known makers of break-out boards for light and other sensors are SparkFun, Adafruit, DFrobot and MikroE. These can be bought directly from these companies or through major electronic components’ distributors like DigiKey, Mouser, TME, Farnell, as well as through smaller national distributors. Copies and variations of some of these (open hardware) boards are also available through sellers at Tindie, AliExpress, eBay, etc.

4 Conclusion

Some of these very cheap sensors could be adapted to use in the measurement or estimation of quantities used in both agriculture practice and in research. To realize this potential methods for the reliable retrieval of the quantities of interest consistently in time and space need to be developed.

I am currently exploring possible uses of the Yocto-Spectral USB module in agriculture production and plant science research.

Reuse

CC BY-SA 4.0
